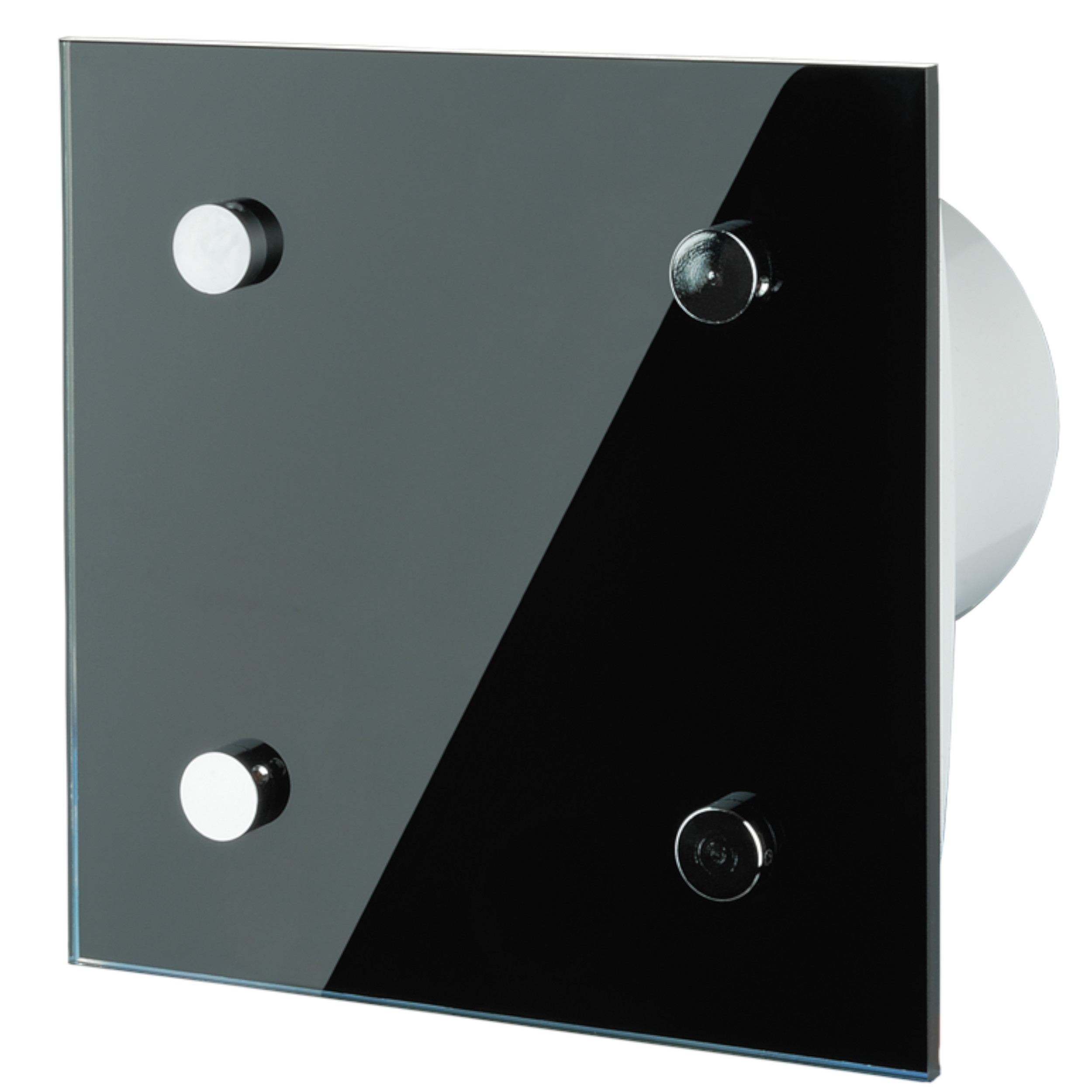

Wall-mounted extractor fan Modern 100 T with timer

nominal size: 100 mm

wattage: 14 W

max. airflow: 88 m³/h

IP34 protection against splashing water

adjustable timer


Item number Modern 100 T

immediately ready for dispatch, delivery time 2 - 3 days

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "XR9BDMR6U9VWW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "d1a80b7493efcb39a1fb9d1ac46ea56e"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "XR9BDMR6U9VWW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "d1a80b7493efcb39a1fb9d1ac46ea56e"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('67611fbeb9c50', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('67611fbeb9c50', 'paypal', 'buynow', 'rect', 'gold'); }

* Incl. VAT excl. Shipping

Dimensions and technical details

  • 220-240 V ~ 50 Hz
  • Colour: black
  • Front material: acrylic glass
  • Housing material: UV-resistant ABS
  • Nominal size: 100 mm
  • Speed levels: 1
  • Wattage: 14 W
  • Current consumption: 0.085 A
  • Revolutions per minute: 2300
  • Max. airflow rate: 88 m³/h
  • Sound pressure level Lp-3m: 33 dB(A)
  • IP rating: IP34
  • Front cover: 170 x 170 x 35 mm
  • Total depth: 130 mm
  • Weight: 0.6 kg
  • Adjustable shut-off timer (2-30 min): fan turns off after expiration of the pre-set time
  • Thermal overload protection
  • KO backdraught valve sold separately
  • Mounting options: wall, ceiling
  • Application: continuous or interval air extraction in bathrooms, WCs, laundry rooms etc. in residential and commercial buildings
