Centrifugal fan Duct fan Vort Quadro Micro I ES Flush-mount

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYjRhNDMzNDU4MjI4ZDU4NWE4ZTlkMDQwNDYzNTg0OTU1MzczNzE5NWQzZTU0MmY5ZmRiZjBhZjk3ZTk3MjA5ZXxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMTRUMTU6MjQ6MDkuMTYzWiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQVBBU2IybGowMEZIbm1FZjhuOWVVTkx2YnZZWG1QclhLN24yenpfaVJkaVBVdG1JZldsTHoySGlYZmJ2enpUWjA4Z1lGdEhFQ0ZLWjlfYmNLdnJuZ1BRSHBBRHdnIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYjRhNDMzNDU4MjI4ZDU4NWE4ZTlkMDQwNDYzNTg0OTU1MzczNzE5NWQzZTU0MmY5ZmRiZjBhZjk3ZTk3MjA5ZXxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMTRUMTU6MjQ6MDkuMTYzWiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQVBBU2IybGowMEZIbm1FZjhuOWVVTkx2YnZZWG1QclhLN24yenpfaVJkaVBVdG1JZldsTHoySGlYZmJ2enpUWjA4Z1lGdEhFQ0ZLWjlfYmNLdnJuZ1BRSHBBRHdnIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); }

if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('673616a4ec3ef', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('673616a4ec3ef', 'paypal', 'buynow', 'rect', 'gold'); }

Dimensions and technical details

220-240 V ~ 50 Hz
Housing colour: white
Housing material: ABS plastic, non-yellowing, UV-resistant
Nominal diameter: 100 mm
Speed levels: 2
Wattage: 8 / 15 W
Current consumption: 0.08 / 0.12 A
Revolutions per minute: 1090 / 1430

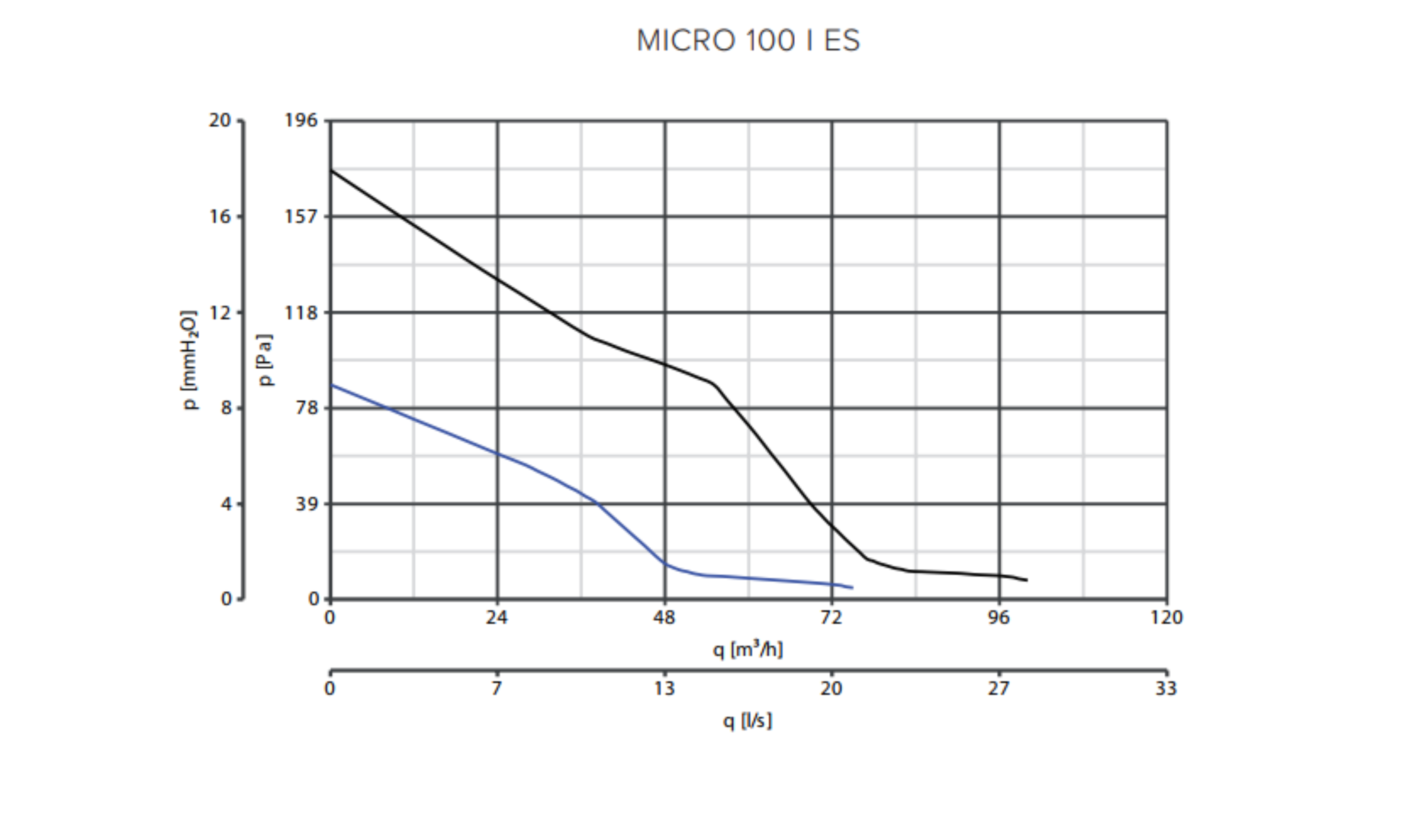

Airflow rate: 75 / 100 m³/h
Total pressure Pmax: 88 / 177 Pa
Sound pressure Lp-3m: 31.8 / 38.4 dB(A)
Max. temperature for continuous operation: 50°C
IP code: IPX4
Insulation class: II
Diameter duct connector: 92 mm

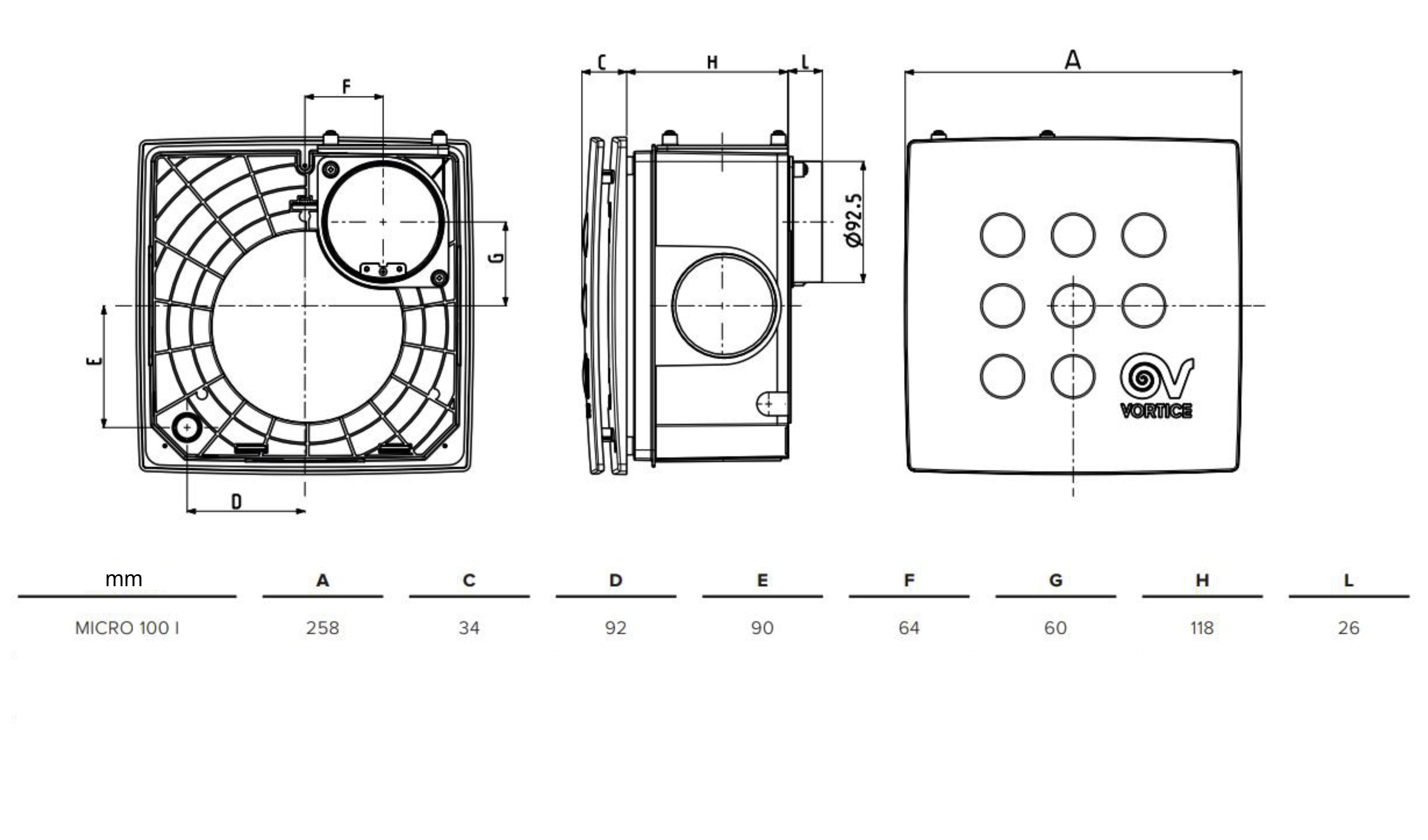

Dimensions front cover: 258 x 258 x 34 mm
Total depth: 152 mm
Total depth with duct connector: 178 mm
Weight: 1.9 kg

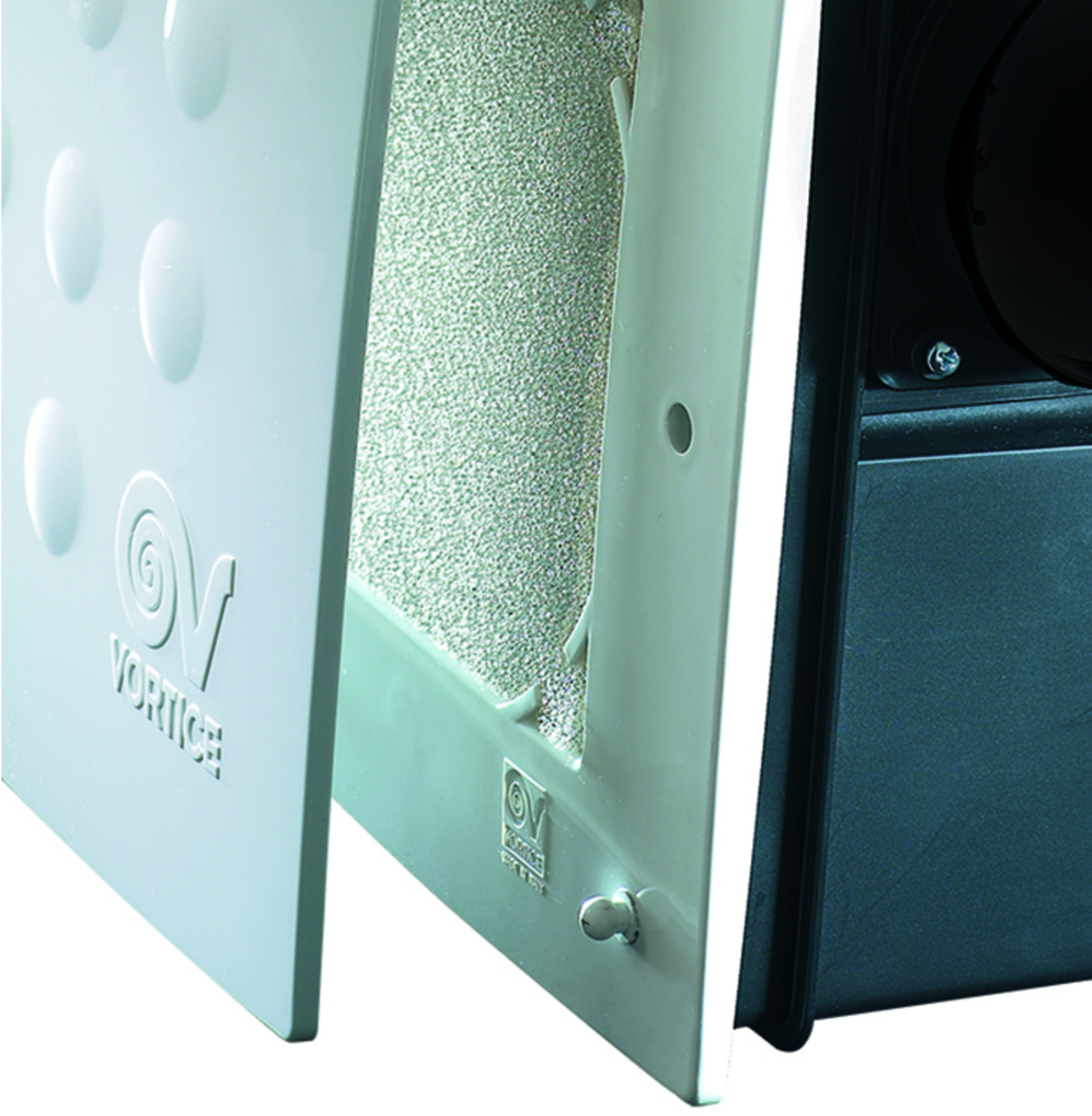

Washable synthetic fibre fleece filter
Thermal overload protection
Ball bearings
Non-return valve prevents cold air from infiltrating once the fan is turned off
Mounting options: flush-mounted, any position
Exhaust nozzles on the side and back make it possible to connect a second room to the fan
