Axial-flow extractor fan for wall Quiet Extra V 150 with pull chain
nominal size: 150 mm
wattage: 22 W
max. airflow: 370 m³/h
IP45 protection against water jets
pull cord operation
Item number Quiet Extra 150 V
immediately ready for dispatch, delivery time 2 - 3 days
* Incl. VAT excl. Shipping

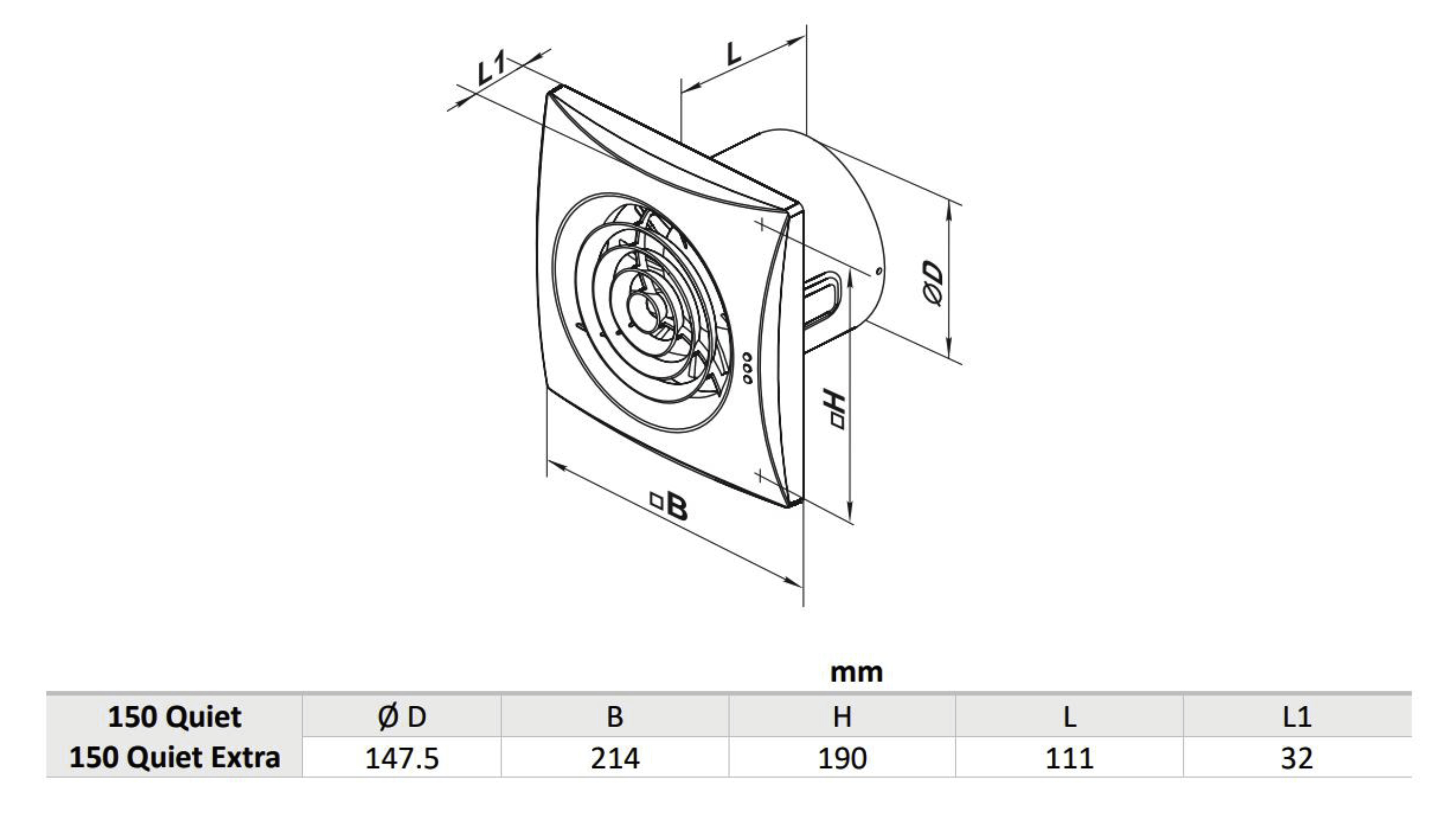

Dimensions and technical details
- 220-240 V ~ 50/60 Hz
- Housing colour: white
- Housing material: UV-resistant ABS
- Nominal size: 150 mm
- Speed levels: 2
- Wattage: 19 / 22 W
- Current consumption: 0.09 / 0.1 A
- Airflow rate: 280 / 370 m³/h
- Sound pressure level Lp-3m: 32 / 38 dB(A)
- IP rating: IP45
- Diameter pipe connection: 147.5 mm
- Depth pipe connector: 111 mm
- Front cover: 214 x 214 x 32 mm
- Weight: 1.3 kg
- Pull cord operation: on / off
- Thermal overload protection
- Integral backdraught shutter prevents cold air from infiltrating
- Mounting options: wall
- Application: direct connection to the ventilation shaft
