Vents

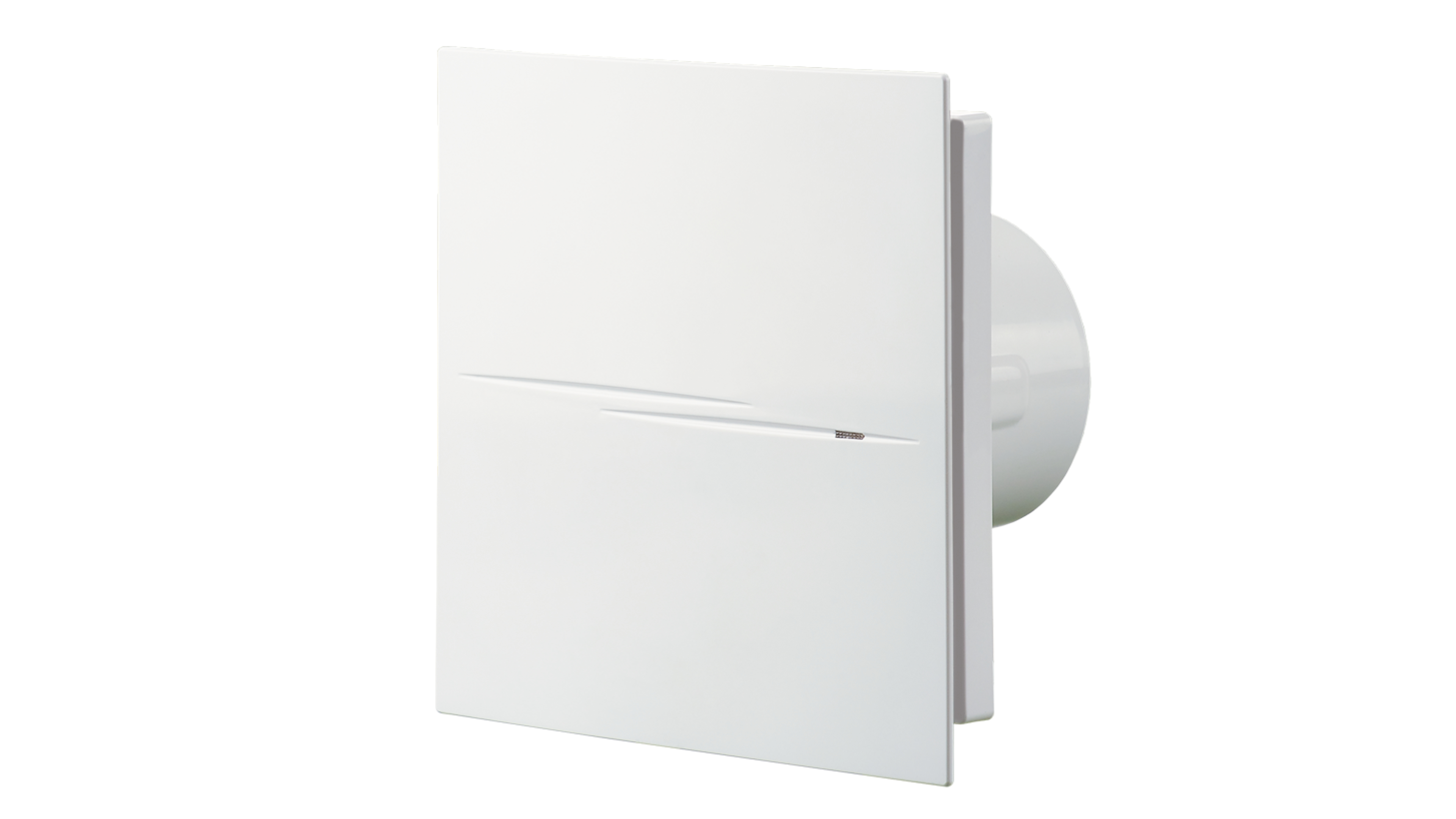

Wall-mounted extractor fan Quiet Style VTH 100 with pull cord, timer & hygrostat

nominal size: 100 mm

wattage: 7.5 W

max. airflow: 90 m³/h

IP45 protection against water jets

pull switch, adjustable timer & humidity sensor


Item number Quiet Style VTH

immediately ready for dispatch, delivery time 2 - 3 days

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiODk3ZmYwNmVkNjdkNzRiNzUxYzljMTYzNTBiNWMyZGFiZDk5YmFlZjRjYjVkMWY1MjAwNmMyZmNmYWIwNTJmZnxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMTdUMDg6MzA6NDAuMjg4WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU9KZHNvc3JoV3hhbmg2clQ4d2duc3FTc1JtZEF5SkhxNTNZTTBNcnBOQWxsUFBsbVJlTGFPTEVRZkFROVBYXy1VUF9sbVplOUVRSmxrZFpsd29fYVdQdnUtcFd3In19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiODk3ZmYwNmVkNjdkNzRiNzUxYzljMTYzNTBiNWMyZGFiZDk5YmFlZjRjYjVkMWY1MjAwNmMyZmNmYWIwNTJmZnxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMTdUMDg6MzA6NDAuMjg4WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU9KZHNvc3JoV3hhbmg2clQ4d2duc3FTc1JtZEF5SkhxNTNZTTBNcnBOQWxsUFBsbVJlTGFPTEVRZkFROVBYXy1VUF9sbVplOUVRSmxrZFpsd29fYVdQdnUtcFd3In19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6739b1f0cb61f', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('6739b1f0cb61f', 'paypal', 'buynow', 'rect', 'gold'); }

* Incl. VAT excl. Shipping

Dimensions and technical details

  • 220-240 V ~ 50 Hz
  • Housing colour: white
  • Housing material: UV-resistant ABS
  • Nominal size: 100 mm
  • Wattage: 7.5 W
  • Current consumption: 0.05 A
  • Speed levels: 1
  • Max. airflow rate: 90 m³/h
  • Sound pressure level Lp-3m: 26 dB(A)
  • IP rating: IP45
  • Diameter pipe connection: 99 mm
  • Front cover: 200 x 200 mm x 49 mm
  • Total depth: 130 mm
  • Weight: 0.7 kg
  • Pull cord, adjustable shut-off timer (2-30 min), humidity sensor (60-90%): on / off via pull cord, fan turns off after expiration of the pre-set time once the humidity level falls below the pre-set value
  • Thermal overload protection
  • Integral backdraught shutter prevents cold air from infiltrating
  • Mounting options: wall
  • Application: direct connection to the ventilation shaft
