Vents Centrifugal Fan Range 100 CF3 up to 90 m³/h IP24

IP24 rated

very quiet, various models available

reliable motor with low energy consumption

maintenance-free continuous operation

integrated overheat control


Item number 100 CF3

immediately ready for dispatch, delivery time 2 - 3 days

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "XR9BDMR6U9VWW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "8fa5269137e2a0d3351dc990cf46a3e5"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "XR9BDMR6U9VWW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "8fa5269137e2a0d3351dc990cf46a3e5"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('676a3e1909c9c', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('676a3e1909c9c', 'paypal', 'buynow', 'rect', 'gold'); }

* Incl. VAT excl. Shipping


  • 220 - 240 Volt / 50/60 Hertz
  • Material: housing and impeller made of top-quality UV-resistant ABS
  • Fan and motor are designed for low-noise, energy-saving operation
  • Colour: white
  • Motor: 12V low voltage motor requires transformer TRF 220/12-25 for connection to the power mains (sold separately)
  • Type: centrifugal extractor fan
  • Control: via light switch (not included in the delivery) or controller P3-1-300 (sold separately
  • For pipes with diameter: 100mm
  • Quality: Long, trouble-free service life thanks to ball-bearing and vibration dampeners, integrated protection against overheating
  • Maintenance-free continuous operation
  • Integrated automated valve prevents backflow of air
  • Centrifugal impeller with forward-curved blades ensures high operating pressure and low noise level
  • Dust filter protects inner parts
  • Power consumption (Watt): max. 27
  • Current consumption (Ampere): max. 0.16
  • Sound level - in 3m distance (dB(A)): max. 34
  • Airflow (m³/h): max. 90
  • Revolutions per minute: max. 1593
  • Mounting options: installation on walls and ceilings, directly into the ventilation shaft or for connection to pipes
  • Installation position: flush-mounted (in-wall) and surface-mounted (on-wall), vertical and horizontal
  • Ideal for humid areas
  • Ideal for ventilation systems with high air resistance
  • IP protection code: IP24 (splashing water)
  • Suitable for continuous oder intermittent ventilation (exhaust) of sanitary installations, showers, kitchens and other domestic areas
  • Easy to install
  • Weight: 1.3 kg



Vents Radialventilator CF3 100 Abmessungen


Dimensions in mm

Model

ØD

B

H

L

L1

L2

L3

Vents 100 CF

100

180

195

132

59

73

26



Kennlinie

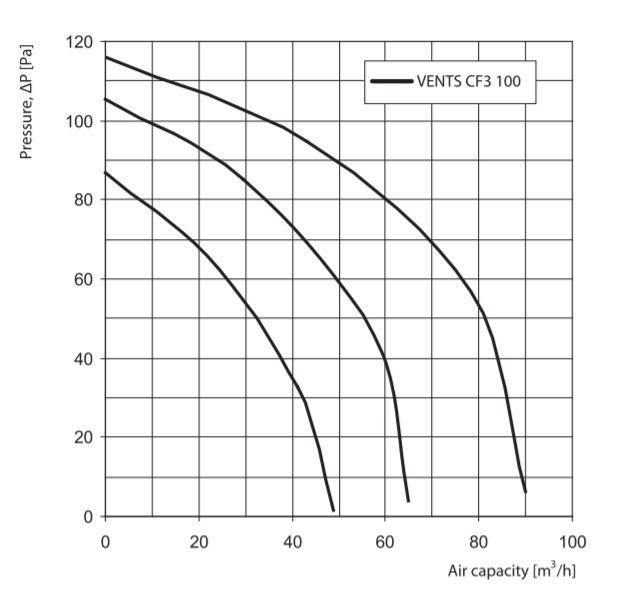

Vents 100 CF3 Characteristics
