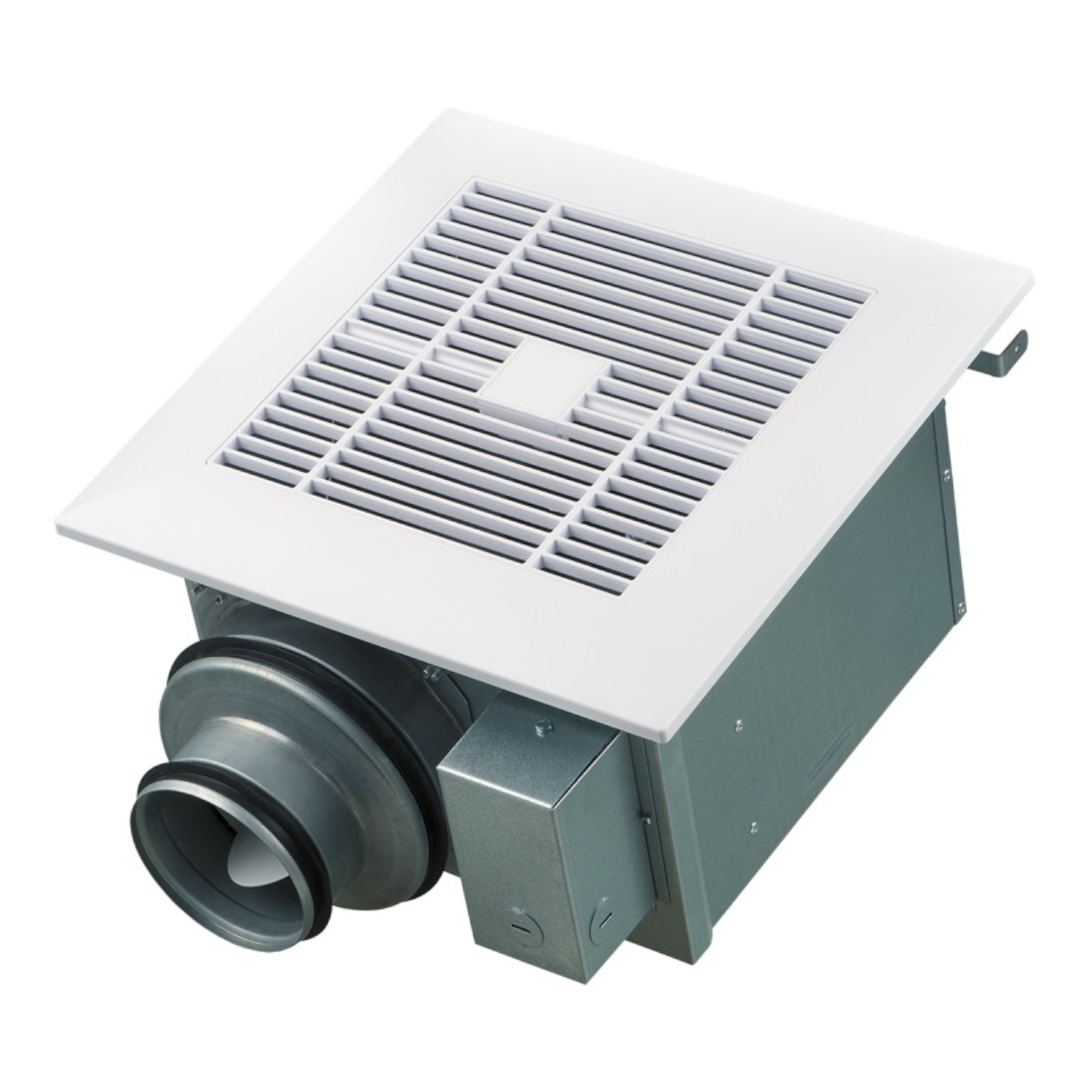

Ceiling-mounted Centrifugal extractor fan CBF 300

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiODQyODhiYjk5OGRiMWYxNzNmNWRmODBiYWEwMmRiZTAzNDBhN2ZmNjIyYmRmZDE4NWMwZDAxNzhlMzMwM2U5NnxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMjBUMTY6NDI6NDUuMTIxWiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU1PNHZmUXI0a09oUjNsUW5kRlJ5YmMzWnZOVmVnVlNycEtJVU5oNWVpTjlfM05MWWdwa09HckdwOVVBaVhRME0tendsMDFfTkQ4WlRfSlgzY1duNDFxdE5qUmJ3In19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiODQyODhiYjk5OGRiMWYxNzNmNWRmODBiYWEwMmRiZTAzNDBhN2ZmNjIyYmRmZDE4NWMwZDAxNzhlMzMwM2U5NnxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMjBUMTY6NDI6NDUuMTIxWiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU1PNHZmUXI0a09oUjNsUW5kRlJ5YmMzWnZOVmVnVlNycEtJVU5oNWVpTjlfM05MWWdwa09HckdwOVVBaVhRME0tendsMDFfTkQ4WlRfSlgzY1duNDFxdE5qUmJ3In19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); }

if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('673e1ae0e567d', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('673e1ae0e567d', 'paypal', 'buynow', 'rect', 'gold'); }

Dimensions and technical details

220-240 V ~ 50 Hz
Housing material: galvanised steel
Impeller material: ABS plastic
Speed levels: 2
Wattage min./max.: 31 / 49 W
Current consumption min./max.: 0.15 / 0.22 A
Revolutions per minute min./max.: 936 / 1254
Airflow rate min./max.: 220 / 300 m³/h
Airflow rate min. / max.: 61 / 83 l/s
Sound pressure level Lp-3m min./max.: 28 / 31 dB(A)
IP code: IPX4
Weight: 5.3 kg
Control panel on the fan
Overheating protection
Integral backdraught shutter prevents cold air from infiltrating
Includes mounting frame
Mounting options: ceiling
For pipe systems with high air resistance (diameter 150 mm)
Application: permanent and interval ventilation in bathrooms, showers, kitchens, living rooms

Dimensions in mm	A	E	B	L1	L2	h	H	Ø D	d	C
CBF 300	330	395	258	50	/	18	188	149	/	260
