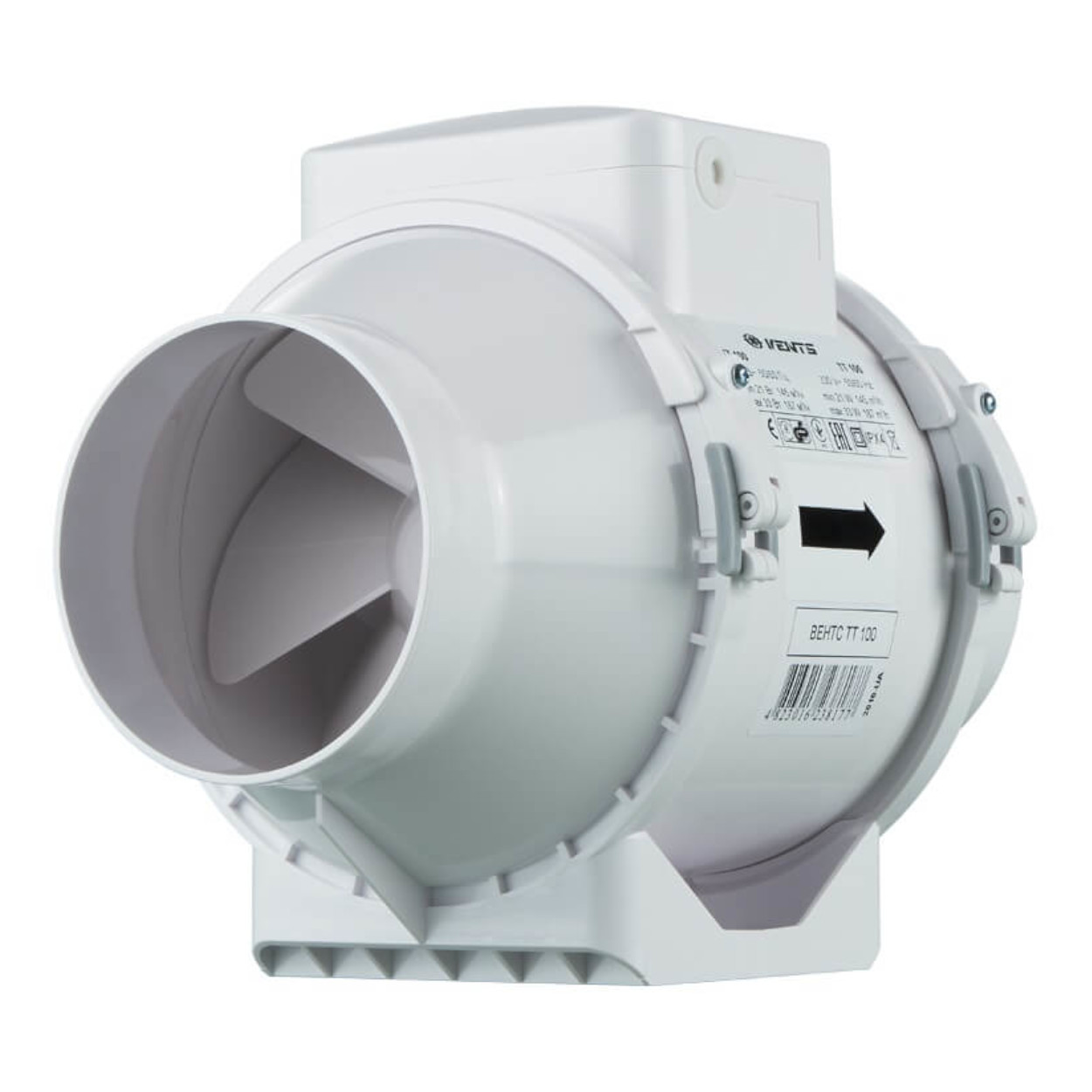

Mixed-flow inline fan range Vents TT 160 up to 520 m³/h IPX4

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYzEwOTZkZmFjYWFlNzdiMzg5YTY1MmYzZDY4N2Y3M2VhMjkzOGY0ZDEzZWQ1ZTE0MDVkZGU3MmUyNGI2NzNhNHxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMjNUMDM6MDU6MTMuNzcyWiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU9sajBFMWxocVdNMEhuYzd3MTVyY1NlNlFKb0ZsTHdlN1NzQkdCVzhGcllHbjhHTmhncDN6bHBHNlFmRHc1dEwxcnhPTHE3ZTVTaVNMTkJsUG5NQW1LQkZuWGVRIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYzEwOTZkZmFjYWFlNzdiMzg5YTY1MmYzZDY4N2Y3M2VhMjkzOGY0ZDEzZWQ1ZTE0MDVkZGU3MmUyNGI2NzNhNHxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMjNUMDM6MDU6MTMuNzcyWiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU9sajBFMWxocVdNMEhuYzd3MTVyY1NlNlFKb0ZsTHdlN1NzQkdCVzhGcllHbjhHTmhncDN6bHBHNlFmRHc1dEwxcnhPTHE3ZTVTaVNMTkJsUG5NQW1LQkZuWGVRIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); }

if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('67414c9ca06ff', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('67414c9ca06ff', 'paypal', 'buynow', 'rect', 'gold'); }

Dimensions and technical details

220-240 V ~ 50 Hz
Housing colour: white
Housing material: robust plastic
Nominal size: 160 mm
Wattage min./max.: 30 / 60 W
Power consumption min./max.: 0.17 / 0.27 A
Revolutions per minute min./max.: 1680 / 2460

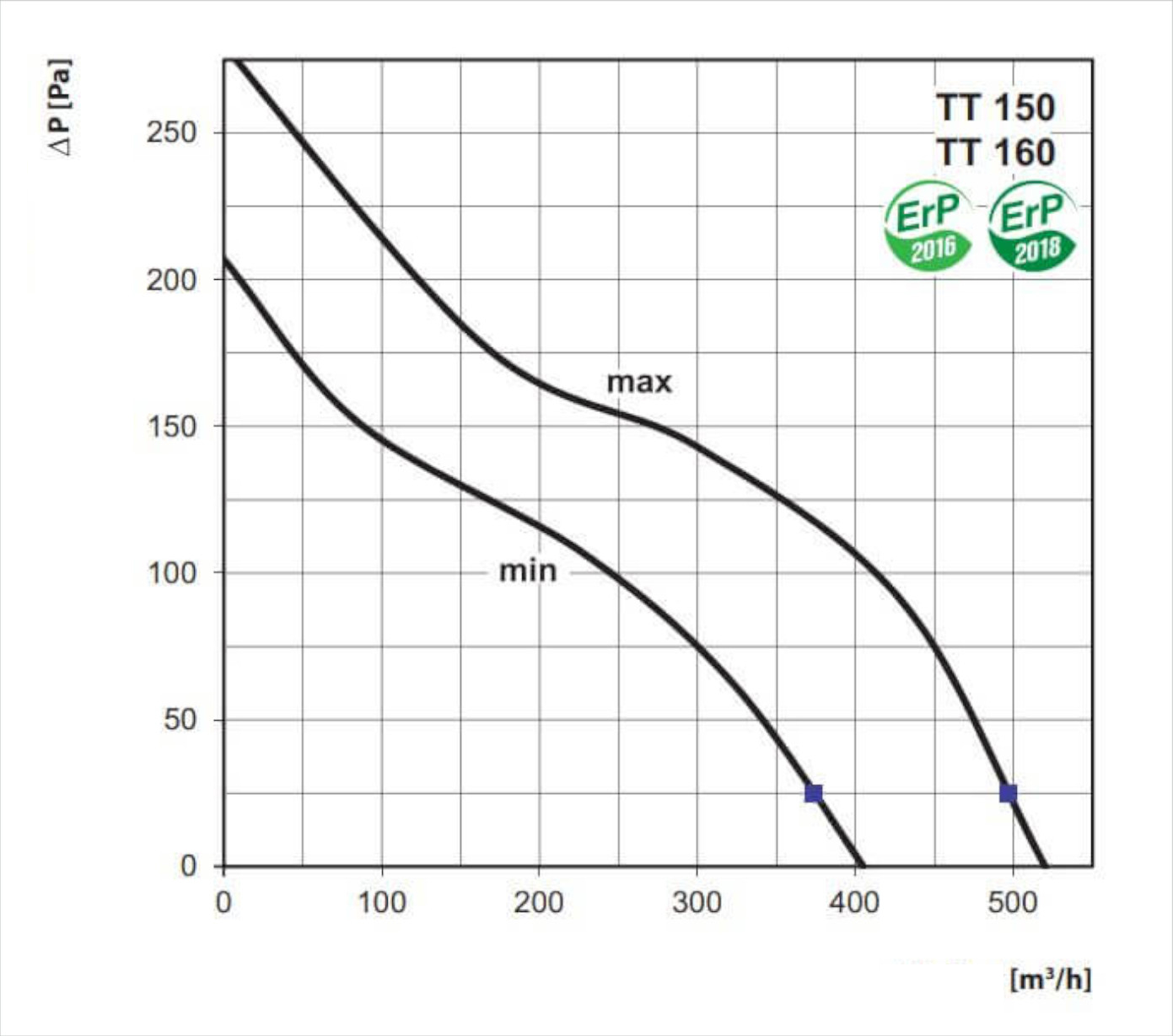

Airflow rate min./max.: 405 / 520 m³/h
Sound pressure Lp-3m min./max.: 33 / 44 dB(A)
Max. temperature for continuous operation: 60°C
IP code: IPX4
Weight: 3.22 kg
Ball-bearing motor
Mounting options: any position
Motor unit can be removed quickly and easily for cleaning and maintenance
Application: ventilation systems requiring high pressure and low noise level
Ideal for air extraction in damp rooms of residential and commercial properties

Model	Ø D	B	H	L
TT 160	158 mm	233 mm	250 mm	295 mm
