Vents

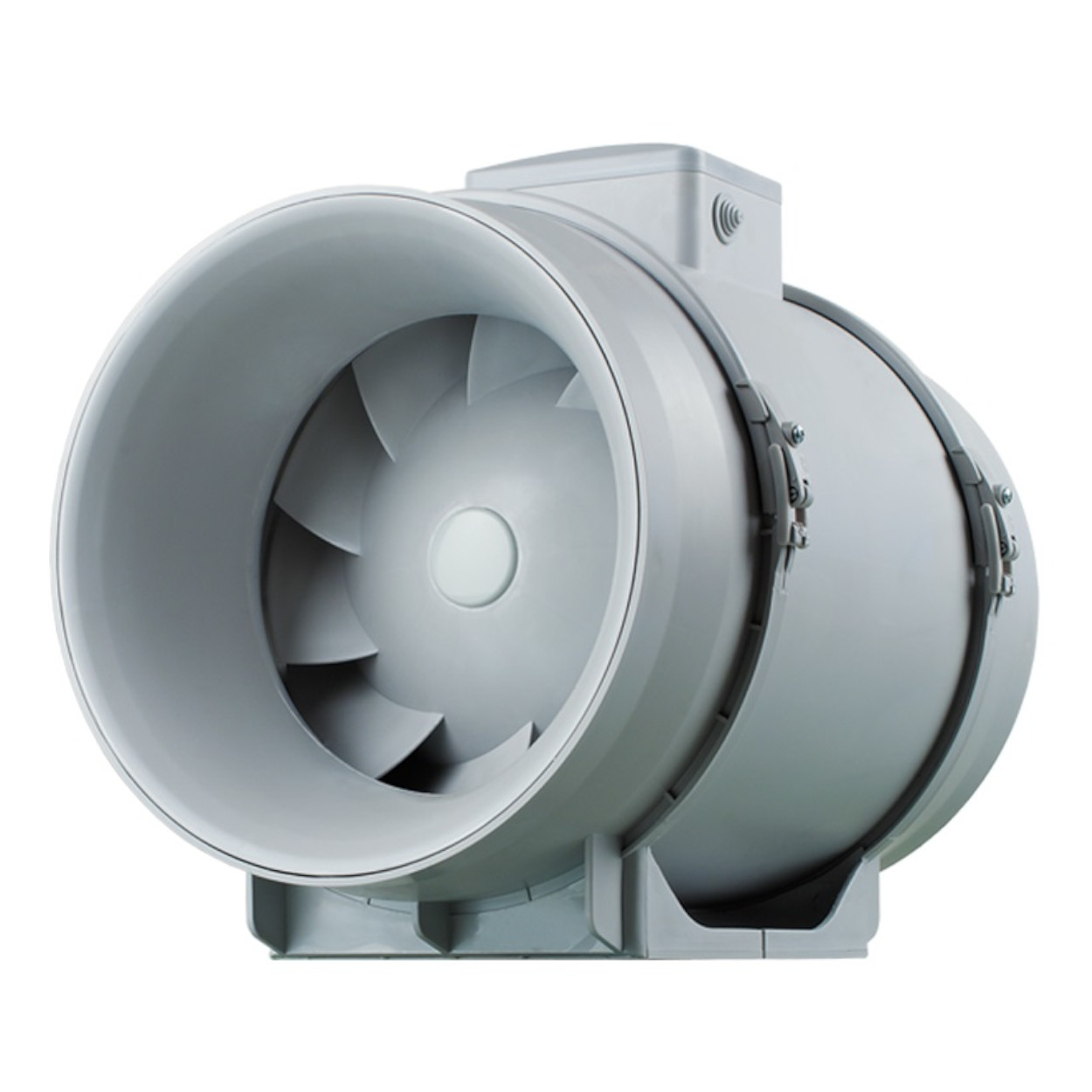

Mixed-flow inline fan Vents TT Pro 315 T with timer

nominal size: 315 mm

wattage: 320 W

max. airflow: 2050 m³/h

IPX4 protection against splashing water

adjustable timer


Item number TT Pro 315 T

immediately ready for dispatch, delivery time 2 - 3 days

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "XR9BDMR6U9VWW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "4489231511901e9ecdd1ee9db5009687"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "XR9BDMR6U9VWW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "4489231511901e9ecdd1ee9db5009687"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6772d15eaecc6', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('6772d15eaecc6', 'paypal', 'buynow', 'rect', 'gold'); }

* Incl. VAT excl. Shipping

Dimensions and technical details

  • 220-240 V ~ 50/60 Hz
  • Housing colour: grey
  • Housing material: robust, flame-retardant polypropylene
  • Nominal size: 315 mm
  • Wattage: 320 W
  • Current consumption: 1.42 A
  • Revolutions per minute: 2430
  • Airflow rate: 2050 m³/h
  • Sound pressure Lp-3m: 58 dB(A)
  • Height: 408 mm
  • Width: 362 mm
  • Length: 445 mm
  • Diameter duct connection : 310 mm
  • Max. temperature for continuous operation: 60°C
  • IP code: IPX4
  • Weight: 12 kg
  • Adjustable shut-off timer (2 - 30 min): fan turns off after expiration of the pre-set time
  • Ball-bearing motor
  • Mounting options: any position
  • Motor unit can be removed quickly and easily for cleaning and maintenance
  • Application: ventilation systems requiring high pressure and low noise level
  • Ideal for air extraction in damp rooms of residential and commercial properties
