Roof fan Chimney fan range Camino up to 1200m³/h IP54

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "XR9BDMR6U9VWW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "7f8c1e6c41fba89c18e67fc0e4f497b4"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "XR9BDMR6U9VWW"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "7f8c1e6c41fba89c18e67fc0e4f497b4"); }

if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('67622bd59d06f', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('67622bd59d06f', 'paypal', 'buynow', 'rect', 'gold'); }

Dimensions and technical details

220 - 240 Volt, 50 Hertz
Self-cooling, ball-bearing induction motor with thermal overload protection
4-pin with heat shield
Different models available: Tiracamino, Tiracamino-GR, Turbocamino
Turbocamino: Equipped with an aluminium weather protection hood and mounting base
Turbocamino-GR: Equipped with stainless steel mounting base
Housing made of galvanised steel sheet, resistant to corrosion and weather, powder-coated
Insulation class F, IP54 rating
Centifugal impeller, backward curved, made of galvanised steel sheet, high airflow and pressure resistance
Impeller mounted directly to the motor shaft, dynamically balanced
Protective grille (electrically welded steel, epoxy paint finish) prevents accidental touch and can be detached during maintenance and cleaning work
Robust steel safety wire between base and motor (anchoring the appliance once installed)
Max. temperature for continuous operation: +200°C

Attention: Do not use in gas-fired heating systems!

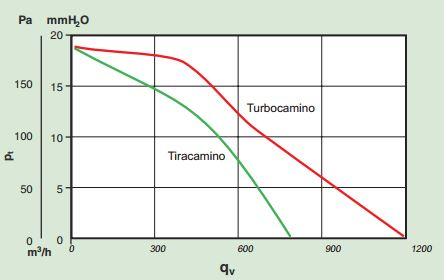

Model	Max. wattage (W)	Max. current consumption (A)	Max. airflow (m³/h)	Total pressure Pmax. (Pa)	Sound pressure Lp-3m (dB(A))	Intake port ø (mm)	Weight (kg)
Tiracamino	120	0.50	750	186	52.0	170	14.3
Tiracamino-GR	120	0.50	750	186	52.0	170	16.3
Turbocamino	110	0.60	1200	187	52.5	175 - 225	15.1

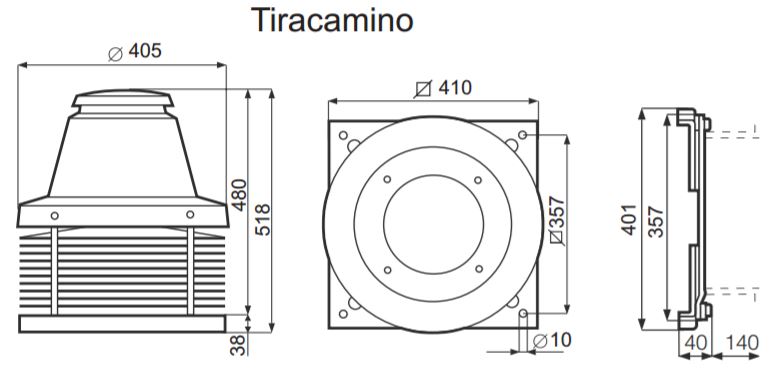

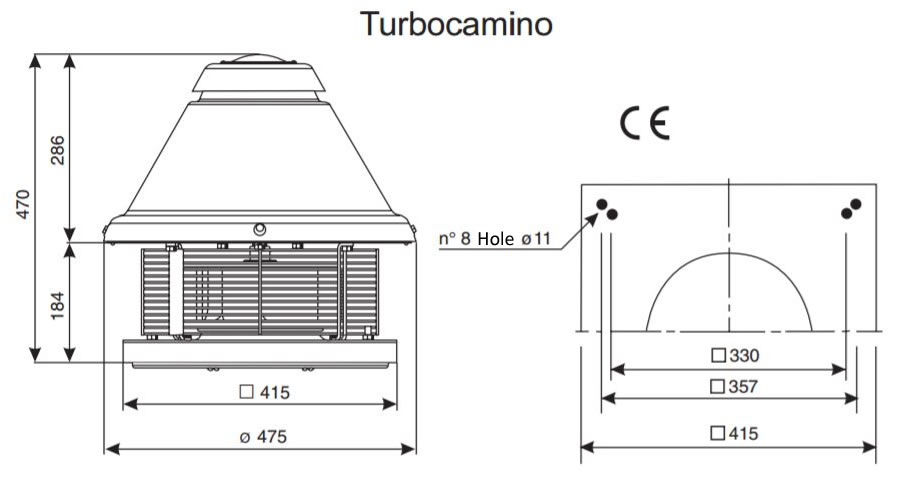

Dimensions in mm

Accessories are available in our shop.
