CasaFan

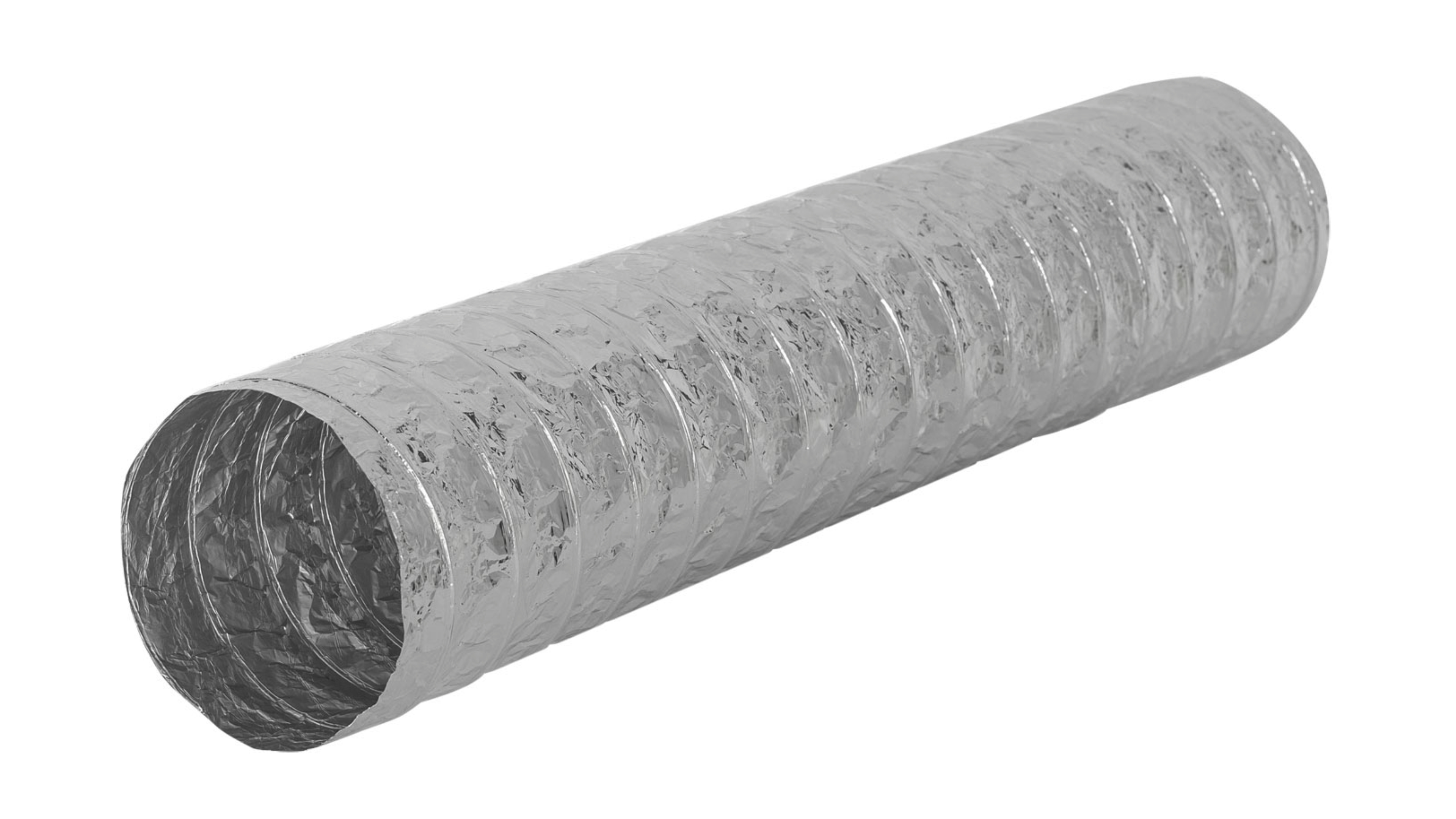

Flexible air duct Aluminium CasaFlex 100 mm - 10 m

nominal size: 100 mm

length: 10 m

three layer aluminium foil

single layer polyester lamination

spring steel frame


Item number 976100

immediately ready for dispatch, delivery time 2 - 3 days

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiMWU3NGI5ZDI4NGRkODZiMjgyMjE5ZGU1MjVkYmZmZmM3MmYxNzdlOWM2YTQ5NjA5MDI0MzFjN2E2MTQ3OWY1OHxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTItMDNUMDA6MzY6MzQuNTQ4WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU9hdzFoUW9YX3U2V2VjOVU0SFFOUmR1T2lFZ3ROZGJKZ3ZEZW5Eb1pLcml3YW5aODM3czRqTVdKSmhOWGhLYkp2eEt4a0o0OGktQnFnUEF3cTNMd21TSjlfemFRIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiMWU3NGI5ZDI4NGRkODZiMjgyMjE5ZGU1MjVkYmZmZmM3MmYxNzdlOWM2YTQ5NjA5MDI0MzFjN2E2MTQ3OWY1OHxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTItMDNUMDA6MzY6MzQuNTQ4WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU9hdzFoUW9YX3U2V2VjOVU0SFFOUmR1T2lFZ3ROZGJKZ3ZEZW5Eb1pLcml3YW5aODM3czRqTVdKSmhOWGhLYkp2eEt4a0o0OGktQnFnUEF3cTNMd21TSjlfemFRIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('674e59c4c6c35', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('674e59c4c6c35', 'paypal', 'buynow', 'rect', 'gold'); }

* Incl. VAT excl. Shipping

Dimensions and technical details

  • Highly flexible air hose
  • Nominal size: 100 mm
  • Inner diameter: 102 mm
  • Outer diameter: 106 mm
  • Length: 10 m
  • Material base: three-layer aluminium foil
  • Lamination: single-layer polyester
  • Spring wire spiral
  • Temperature range: -30°C to +200°C
  • Operating pressure range: -188 Pa to +2500 Pa
  • Max. air velocity: 30 m/s
  • Fire protection class according to DIN EN 13501-1: B-s1, d0
