Vortice

Ceiling air diffuser Air grille CD in various sizes

• ceiling grille for supply and exhaust air • installation in walls and ceilings, connection to vent pipes • model selectable: CD 160, CD 200, CD 250, CD 315 • material: aluminium

Item number 221270

delivery time up to 10 days
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYzU2ZmNjYjVjNWE5ZGZhMTc3Y2IxMDc4M2I0ZmEwM2U4OTA0NmU0YzlhOTM4OGE2MjllYjM3NTgzYWQ3NWU1MXxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMThUMTU6MzY6MTIuNTczWiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU04bEsxVW8yWmVnZHFsSWhSU1BvTlBMX0FZTktTMUstLTBlTmVRSHBYc0VLN0N2VW5lbjJGZzdJdkxja3NDUDdTejBFcTNVM0o5YW9lTC1SZjFZZjFzVEo3Qk1nIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYzU2ZmNjYjVjNWE5ZGZhMTc3Y2IxMDc4M2I0ZmEwM2U4OTA0NmU0YzlhOTM4OGE2MjllYjM3NTgzYWQ3NWU1MXxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMThUMTU6MzY6MTIuNTczWiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU04bEsxVW8yWmVnZHFsSWhSU1BvTlBMX0FZTktTMUstLTBlTmVRSHBYc0VLN0N2VW5lbjJGZzdJdkxja3NDUDdTejBFcTNVM0o5YW9lTC1SZjFZZjFzVEo3Qk1nIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('673b60a21f1f6', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('673b60a21f1f6', 'paypal', 'buynow', 'rect', 'gold'); }
* Incl. VAT excl. Shipping



Dimensions and technical details

  • Material: aluminium
  • Colour: white, enamelled
  • Model selectable: CD 160, CD 200, CD 250, CD 315
  • Ceiling grille for installation in walls and ceilings, connection to vent pipes
  • Flow rate can be regulated



Model Ø A mm Ø D mm Ø E mm F mm
CD 160 260 150 220 70
CD 200 310 200 270 70
CD 250 360 250 320 70
CD 315 420 300 380 70

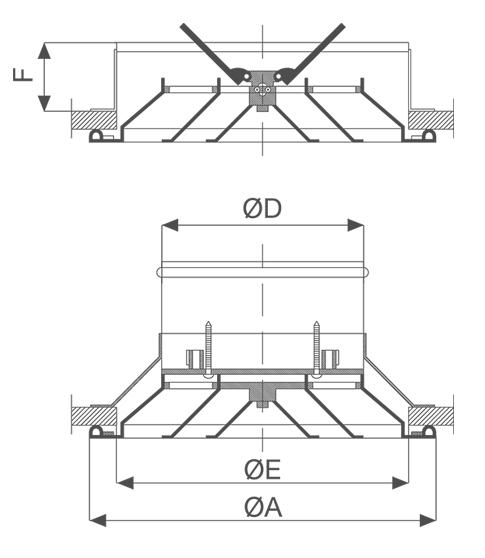

CD ceiling air diffusor dimensions

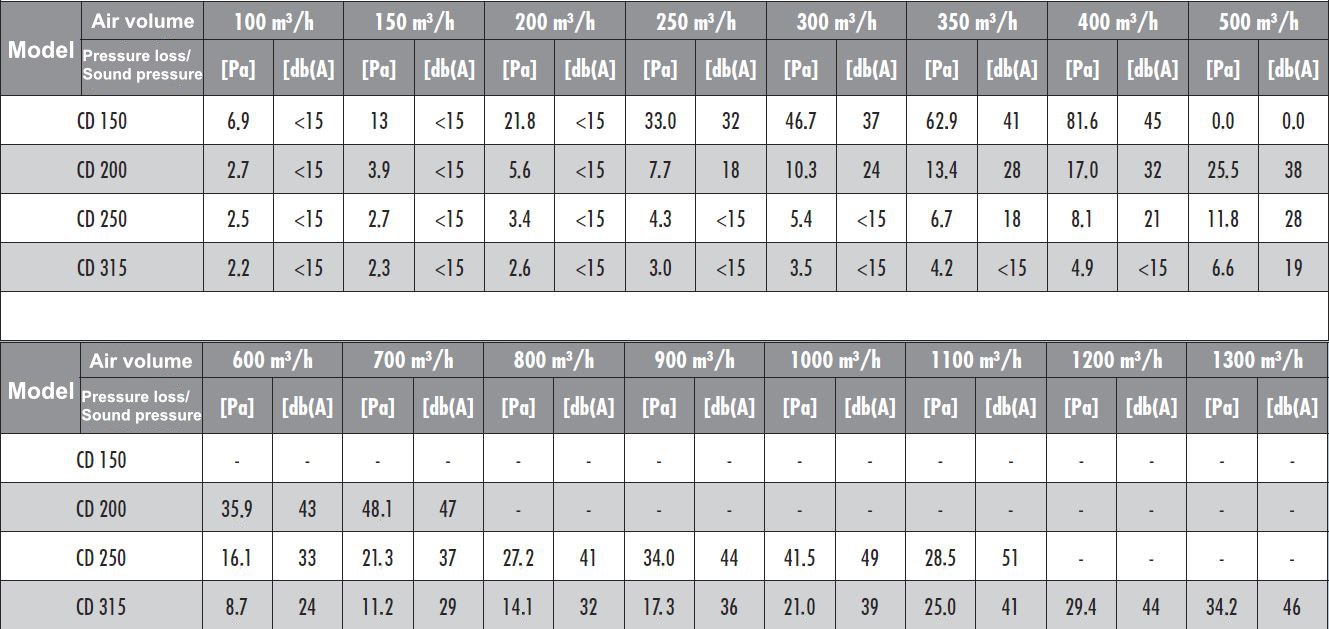

CD air diffusor Air grille Vortice technical data air volume and pressure loss
