CasaFan

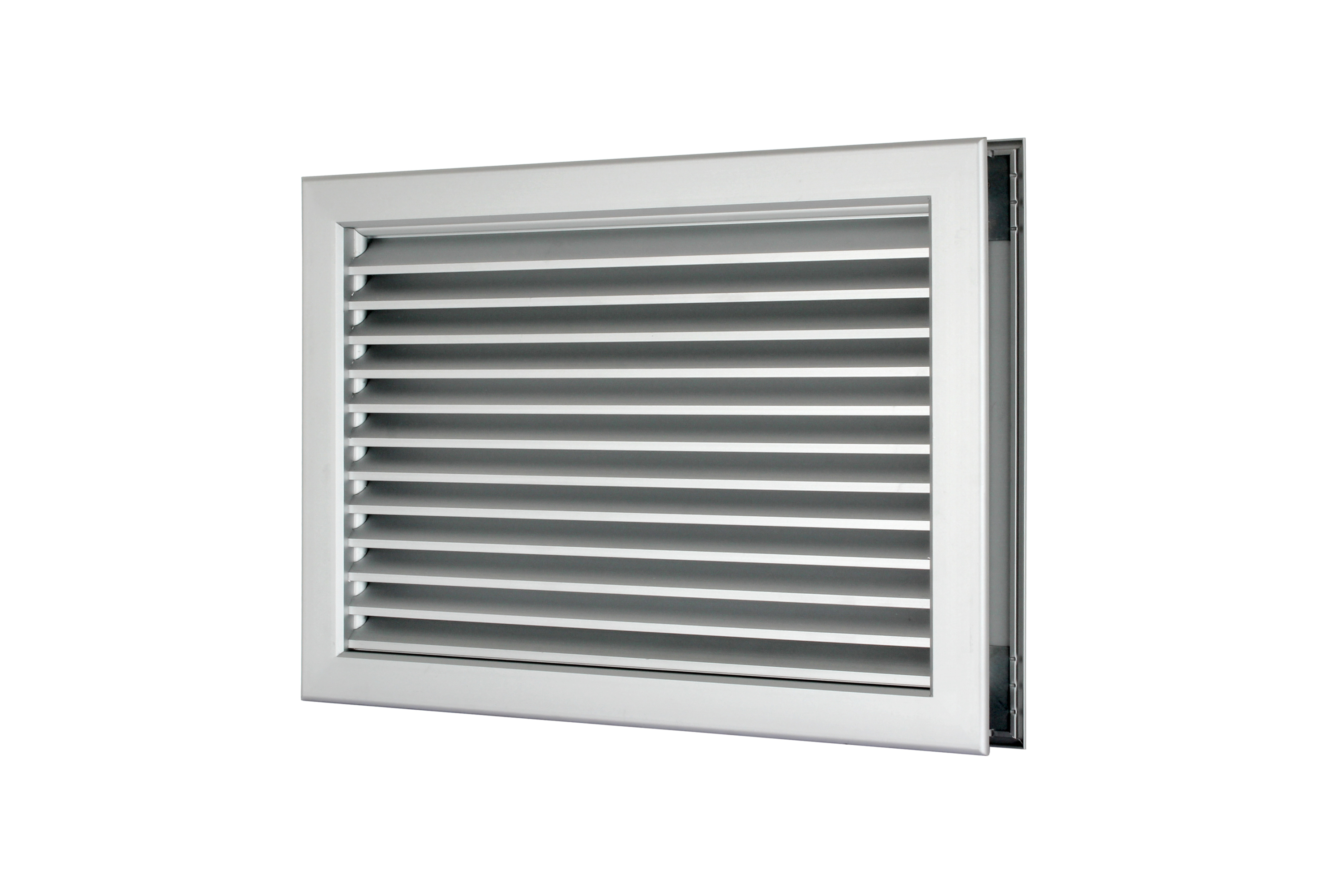

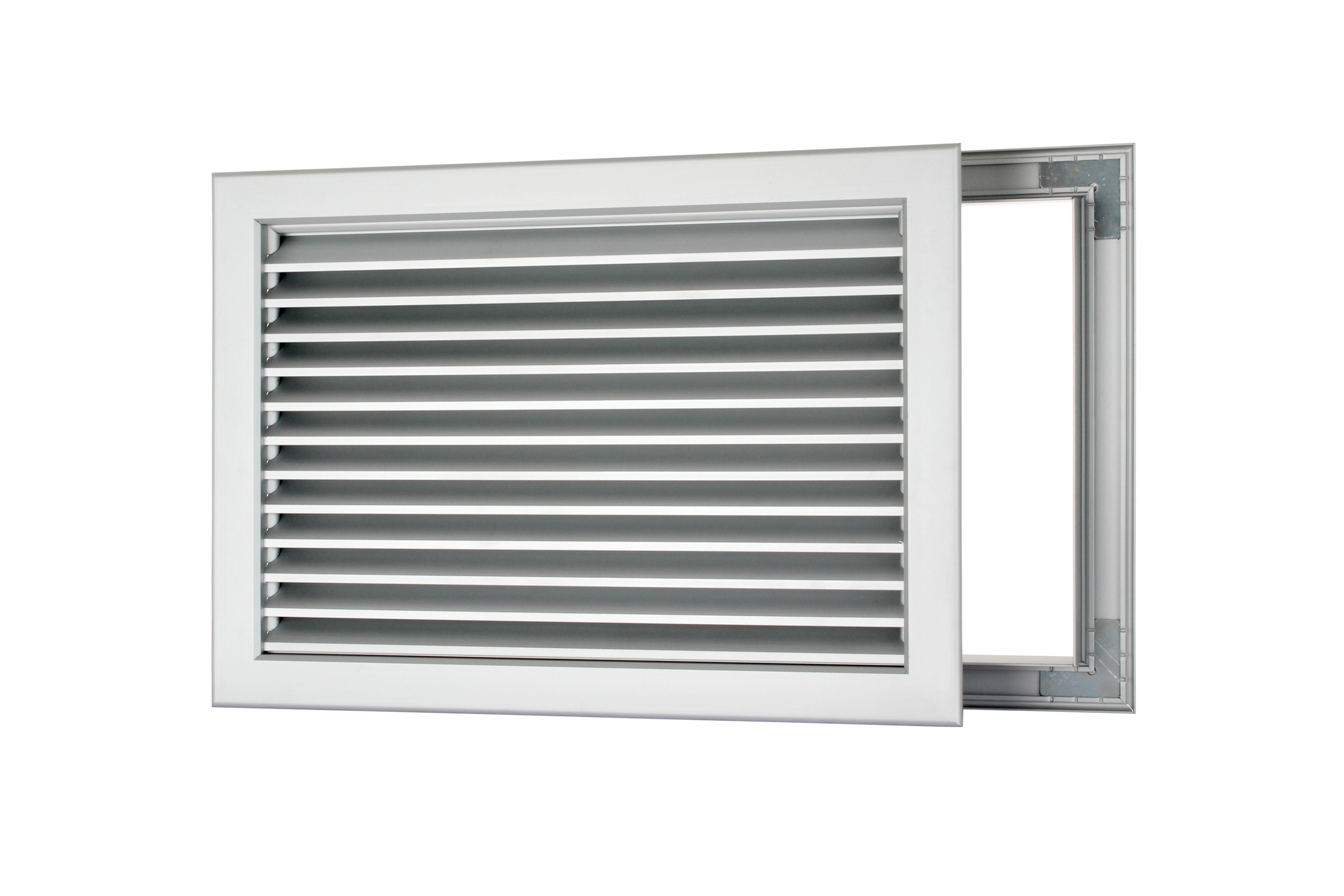

Door grille Overflow grille SSGA 525 x 325
pressure relief for installation in doors
colour: natural aluminium
outer dimensions: 525 x 325 mm
Item number 879153
immediately ready for dispatch, delivery time 2 - 3 days
* Incl. VAT excl. Shipping
Dimensions and technical details
- Pressure relief grille for installation on doors
- Housing colour: natural aluminium
- Housing material: anodised aluminium
- Outer dimensions: 525 x 325 mm
- Door cut-out: 520 x 305 mm
- Door thickness: 36 - 60 mm
- Volume flow at 5 Pa: 255 m³/h
- Volume flow at 15 Pa: 450 m³/h
- Immovable blinds prevent view from the other side
- Installation: fitted with clamp springs
- Can be installed on walls by leaving out the counter frame
