Window fan VV 230 up to 455 m³/h

nominal size: 237 mm

wattage: 29 W

airflow: 455 m³/h

IPX4 protection against splashing water


Item number VV 230

item currently not available, estimated delivery time of maximum 10 weeks

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/wzjm2a03n3t8/plugin/14/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiOWZlYjFiMTA2OTljYmQwZjAyNTM2ZmQ2MGRjM2I4NjQ0NDc5MjU1ZDMyMTQ4ODQ3YjhjMDg1NmZiNDNjMDhmN3xtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMTNUMTc6MjE6NTAuODY2WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU5sX0F2Q2l5R3ZZQWJXOFlCdlB5bG1pdkM3XzlpbV92MlFGbE1HX3RLVkUtLUdHNzRRdEkxa0tlWXFWeEtYcTJZeE1kamt3LXhnOEQ2SG9KM0xkRG02V0F2cDZBIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.setAttribute("data-client-id", "AZoL3Ix0BpgeWCbr0zWOZfvOkWlifQY8U5H44vzL8NikVKb40WyEv6PKdoegnf-I3eekMNmi-7r7zNUN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiOWZlYjFiMTA2OTljYmQwZjAyNTM2ZmQ2MGRjM2I4NjQ0NDc5MjU1ZDMyMTQ4ODQ3YjhjMDg1NmZiNDNjMDhmN3xtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMTEtMTNUMTc6MjE6NTAuODY2WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU5sX0F2Q2l5R3ZZQWJXOFlCdlB5bG1pdkM3XzlpbV92MlFGbE1HX3RLVkUtLUdHNzRRdEkxa0tlWXFWeEtYcTJZeE1kamt3LXhnOEQ2SG9KM0xkRG02V0F2cDZBIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6734eae7ca39d', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('6734eae7ca39d', 'paypal', 'buynow', 'rect', 'gold'); }

* Incl. VAT excl. Shipping

Dimensions and technical details

  • 220-240 V ~ 50/60 Hz
  • Housing colour: white
  • Housing material: UV-resistant ABS
  • Wattage: 29 W
  • Current consumption: 0.13 A
  • Revolutions per minute: 1300
  • Speed levels: 1
  • Airflow rate: 455 m³/h
  • Sound pressure level Lp-3m: 32 dB(A)
  • IP rating: IPX4
  • Nozzle diameter: 237 mm
  • Nozzle depth: 85 mm
  • Front height: 295 mm
  • Front width: 295 mm
  • Front depth: 74 mm
  • Weight: 2.2 kg
  • Thermal overload protection

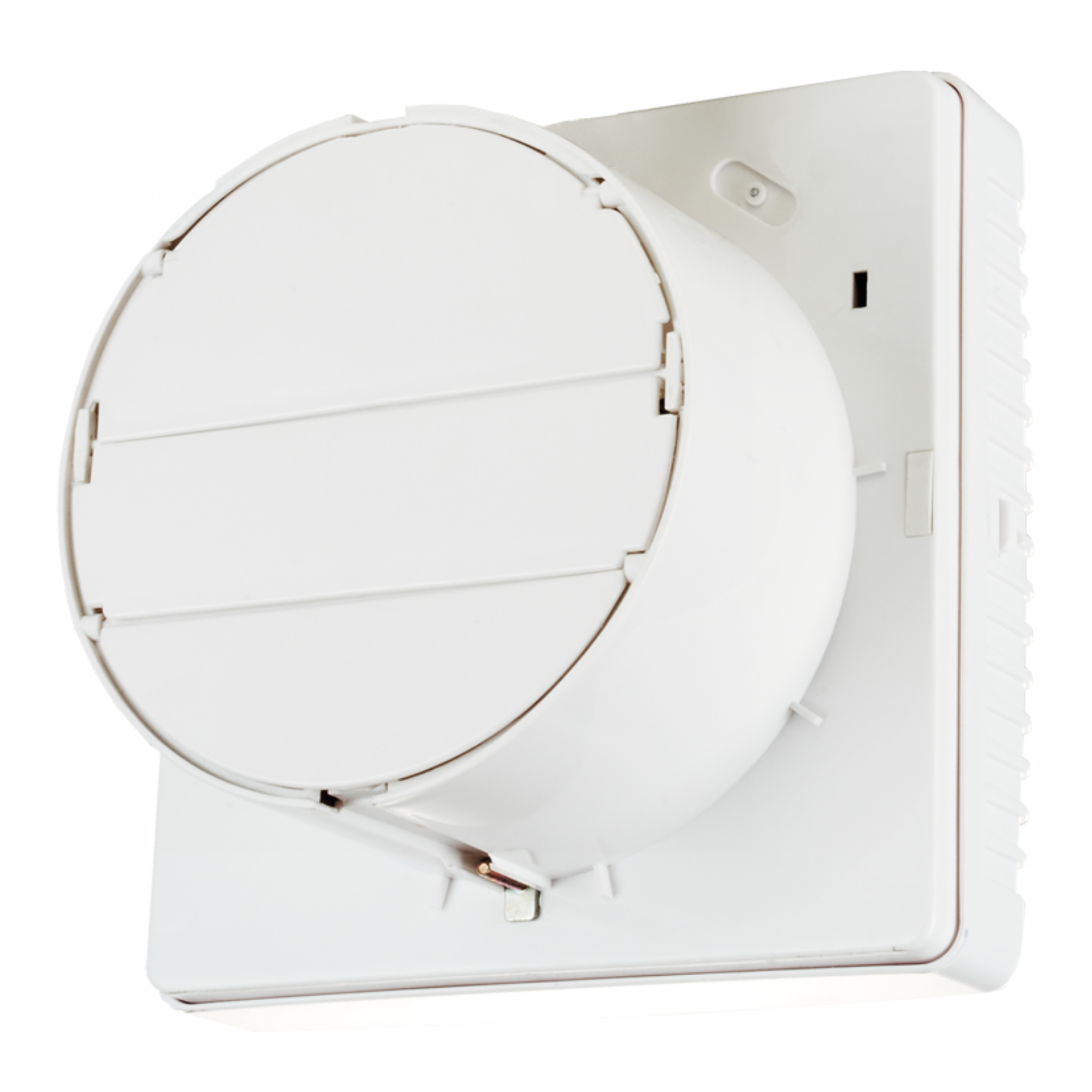

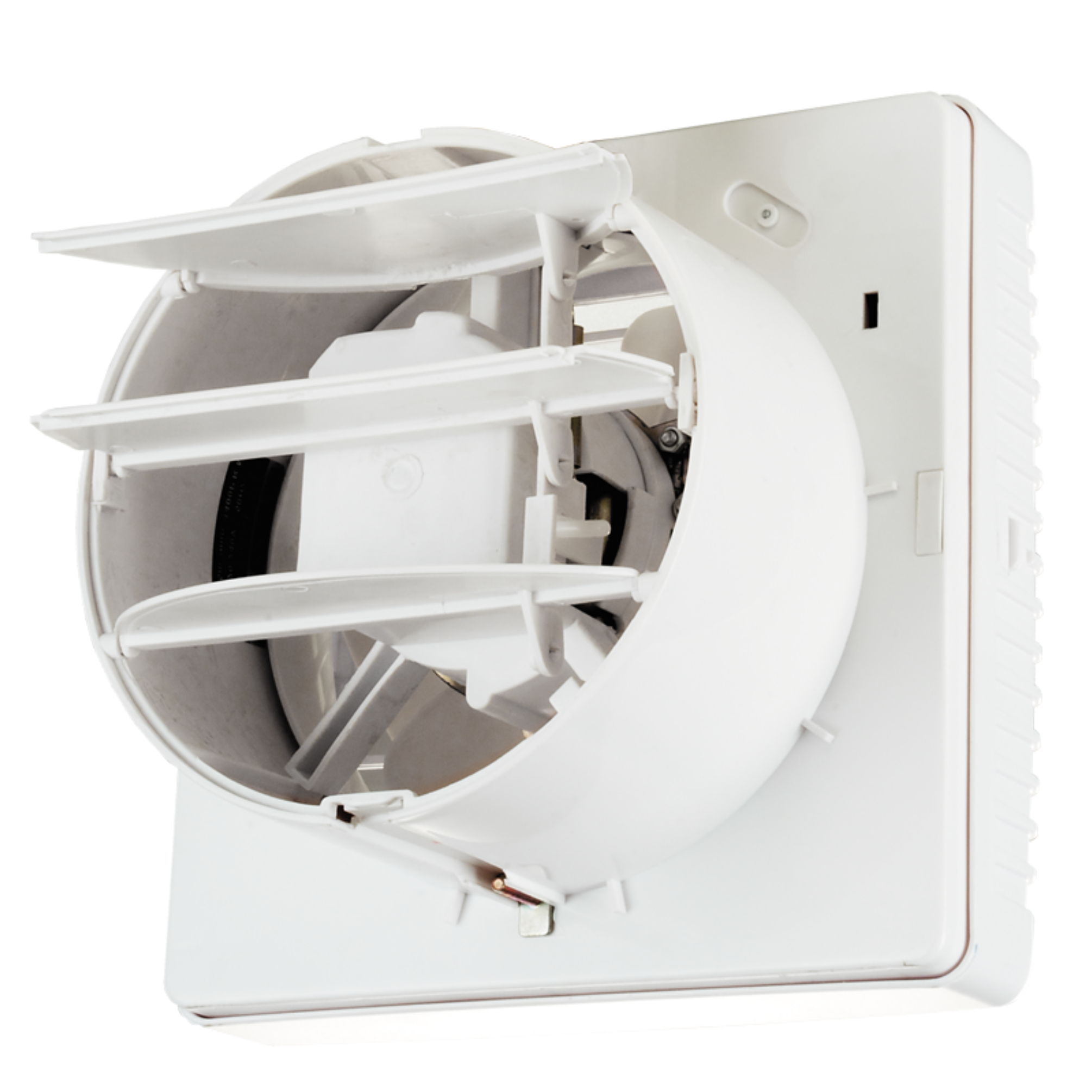

  • Integral backdraught shutter prevents cold air from infiltrating
  • Mounting options: window
  • Application: intermittent or continuous air extraction in small residential rooms
